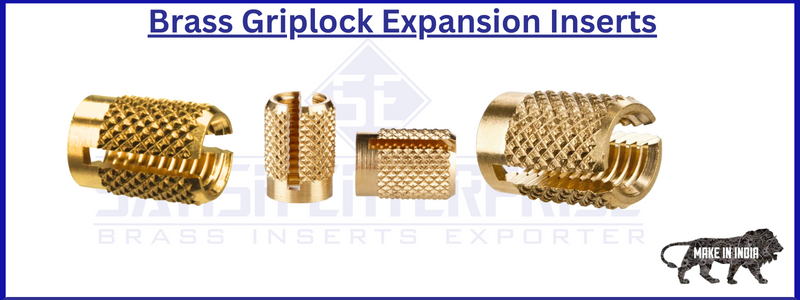

Brass Griplock Expansion Inserts
Enhance the tremendous involvement in this field we at Satish Enterprise give premium nature of Brass Griplock Expansion Inserts according to a national and universal standard. We have a very knowledgeable staff, quality control division, and most recent innovation situated machines and premium nature of crude material so our team produces precise configuration, completion, and mistake-free items.
Our provided knurl patterns give minimum penetration of the side of the hole without sacrificing pull-out resistance. Our inserts expand when the assembly screw is tightened and is used by pressing into the plastic or composite. They are accessible with serrated sections and are push-fit sort.
Our made Special configuration makes them perfect for ABS, molecule board, wood, and frothed plastics.
Specification of Brass Griplock Expansion Inserts
Press-in expansion inserts for somersetting plastics
- Headed and reverse headed versions manufactured
- Different head sizes and body lengths produced
- Easy press-in insertion
- Self-locking action makes it suitable when vibration is unavoidable
Threads:
- ISO metric (MM Threads)
- BA Threads
- BSW Threads
- UNC & UNF Threads
- As Per Customers Requirement
Finishing and Plating:
- Natural, Nickel Platted, Chrome Platted, Tin Plated or any coating as per customer needs and requirements.
Size :
- M2 , M3 , M3.5 , M4 , M5 , M6 , M8 , M10 , M12 , M16 , M20 , 1/8″ , 5/32″, 3/16″, 1/4″, 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ in Metric BSW , BSF , BSP , R , G , UNC , UNF , NPT , NPSM, NPTF , FPT Threads.
Dimensions :
| Internal thread sizes (ISO Metric) |
Length | Length* | Head thickness | Head dia. | External dia. | Rec. hole size -0.00 +0.10 |
Min. wall thickness |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| M3 | 4.7 | 3.5 | 0.51 | 5.5 | 4.2 | 4.0 | 3.2 |
| M4 | 7.9 | 5.0 | 0.82 | 7.1 | 5.9 | 5.6 | 4.0 |
| M5 | 9.4 | 6.0 | 0.99 | 7.9 | 6.6 | 6.4 | 4.8 |
| M6 | 12.6 | 9.5 | 1.25 | 9.5 | 8.3 | 8.0 | 6.0 |
| M8 | 12.6 | 9.5 | 1.25 | 11.1 | 9.9 | 9.6 | 7.0 |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
We can manufacture and export Brass Products as per specifications (custom drawing and samples) for more information, please
