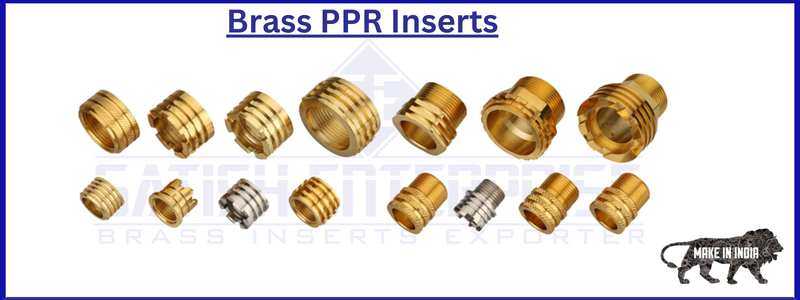

Brass PPR Insert

The Brass PPR Insert is a mechanical threaded nut or adapter. It is utilised with plastic pipe fittings made of random polypropylene copolymer (PPR). to join the pipes securely without causing a leak or damage. This sort of insert works best with plastic and PPR pipe fittings.

Different Types and Sizes

The PPR inserts have a large form variety. Although, most of the time, it depends on the manufacturer and the client’s requirements. You can distinguish them by their knurl structure. The most common knurl shapes are straight, unidirectional, and diamond.

These brass inserts range from 3/8″ to 3″ in diameter to 3/8″ to 5″ in length. And thread sizes range from M2 to M20 according to ISO standards (depending on the type). However, you can adjust the size varies according to your requirements.

Structure Of A Brass PPR Inserts

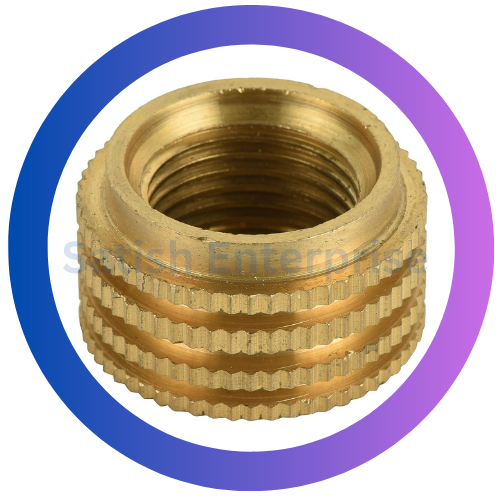

The shape of a brass PPR insert is usually like a barrel or long-rounded. Mostly it comes in a female manner, but the male structure is also available for some particular needs.

It has two ends. One end with spread metal is the head or inlet section. This part always stays above and has a round or hexagonal shape. In addition, you will see different design patterns on the outer body. These designs are known as knurls. Some inserts have diamond-shaped teethed knurls; some have line patterns… and some come with normal thread knurling or combining those designs. It depends on the manufacturer, installation process, and the purpose of that insert.

However, the inside of the inserts is mostly the same. You will always find the standard threads there for joining the PPR fittings.

Being a quality-driven specialty unit, our whole effort lies in offering a broad quality range of Brass PPR Inserts to our valuable customers. Our high-quality PPR Inserts are mostly used for fastening and connecting applications in different industries such as electrical, automotive, automobile, and many more industries.

These are produced by our highly skilled team members with high-quality raw material and advance technology use. They also conduct different methods of a quality check so our products are error-free and easy to install. We ensure on-time delivery to our priceless customers at an affordable price.

We are specialized in manufacturing Brass Plastic Moulding Inserts, Plastic Moulding Inserts, Injection Moulding Inserts, Roto Moulding Inserts, Brass Threaded Inserts, Brass Knurling Inserts available in a variety of designs, shapes, and sizes mainly exporting to international markets to maintain high-quality standard and flowless properties.

To satisfy the various needs of our customers, all of our brass PPR and CPVC inserts adhere to DIN, JIS, and other international norms and standards. We are able to provide a variety of knurling, including diamond knurling, straight knurling, unidirectional knurling, and knurling to customer specifications.

To prevent unnecessary flush from interfering with the inserts, the inner diameter (I/D) after threads has a very tight tolerance.For the majority of applicable PPR Pipes, gas cylinders, electrical equipment, and pipe line assembling, our premium brass PPR/CPVC inserts are suitable.

Features of Brass PPR Insert

• Resistant against corrosion
• Ability to withstand adverse condition
• Dimensional accuracy
• Easy to install
• Threads as per international GO & NO-GO Standards
• Deep groove for maximum pull out resistance
• Inner diameter (I/D) after threads with very close tolerance to prevent unnecessary flush to inter into the inserts
• Available Knurling are Diamond Knurling, Straight Knurling, Unidirectional Knurling or as specified

Technical specifications

FEMALE: 3/8″, 1/2″, 3/4″, 1″, 1″1/4, 1″1/2, 2″, 2″1/2, 3″, 4″, 5″
MALE: 3/8″, 1/2″, 3/4″, 1″, 1″1/4, 1″1/2, 2″, 2″1/2, 3″, 4″, 5″

Materials used:The materials used to produce brass inserts are European, more precisely from Germany and Italy. Satish Enterperise uses the best raw material producers currently on the market.

CW614N (CuZn39Pb3), CW617N (CuZn40Pb2), CW602N (CuZn36Pb2As), CW511L (CuZn38As), Cuphin (CuZn21Si3P)

Other materials: The productive flexibility of Satish Enterperise means that the company can work with other materials, such as bronze with the following technical specifications

CC491K (CuSn5Zn5Pb5-C) o CC499K (CuSn5Zn5Pb2-C).

Surface treatments: The brass inserts can be supplied both untreated and with a nickel surface treatment.

Sample Time: Available in 5-10 days for different items.

Drawing Format: CAD / PDF / DWG / IGS / STEP.

Packaging: Standard package, Carton box or Pallet, As per customized specifications

Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.

We can manufacture and export Brass Products as per specifications (custom drawing and samples) for more information, please
